Programming Interactive Scenes from Monocular Images for Embodied Simulation

NeoWorld-Pro transforms a single RGB image into executable, simulation-ready interactive scenes with programmable geometry, articulation, physical properties, and scene layout.

Yumeng He, Yichen Song, Xiaotian Yang, Weijia Zhang, Zanwei Zhou, Junru Gong, Xiaokang Yang, Yunbo Wang

Shanghai Jiao Tong University

Paper Coming soon Code GitHub Dataset Coming soon

Abstract

The advancement of Embodied AI requires high-quality simulation assets that faithfully mirror the physical world. NeoWorld-Pro reformulates monocular scene reconstruction as a procedural programming task for interactive 3D environments. It leverages multimodal large language models to translate a single RGB image into executable programs defining object geometry, articulation, physical properties, and scene layout.

To ensure simulation readiness, NeoWorld-Pro introduces a physics-in-the-loop mechanism that executes generated programs in a physics engine and iteratively refines them using simulation feedback. The resulting scenes support stable stacking, fine-grained manipulation, and articulated object interactions that are difficult for open-loop reconstruction pipelines.

Interactive Demo

Inspect generated assets and actuate their articulated parts in the browser.

We are actively adding more demos.

USD Preview

Loading demo

Preparing the interactive viewer.

Loading 3D scene...

Choose a case to load its simulation-ready asset.

Dataset and Benchmark

A multi-object simulation benchmark for physically executable scenes.

NeoWorld-Pro is evaluated on PartNet-Mobility and a newly constructed synthetic scene benchmark designed to stress-test monocular reconstruction in physically realistic multi-object environments. The benchmark tasks cover placement, assembly, articulation, and interaction with task-relevant affordances.

Across 84 downstream manipulation tasks, NeoWorld-Pro achieves a 92.85% task success rate.

100 object categories

80 articulated categories

30 USD-format scenes

84 downstream tasks

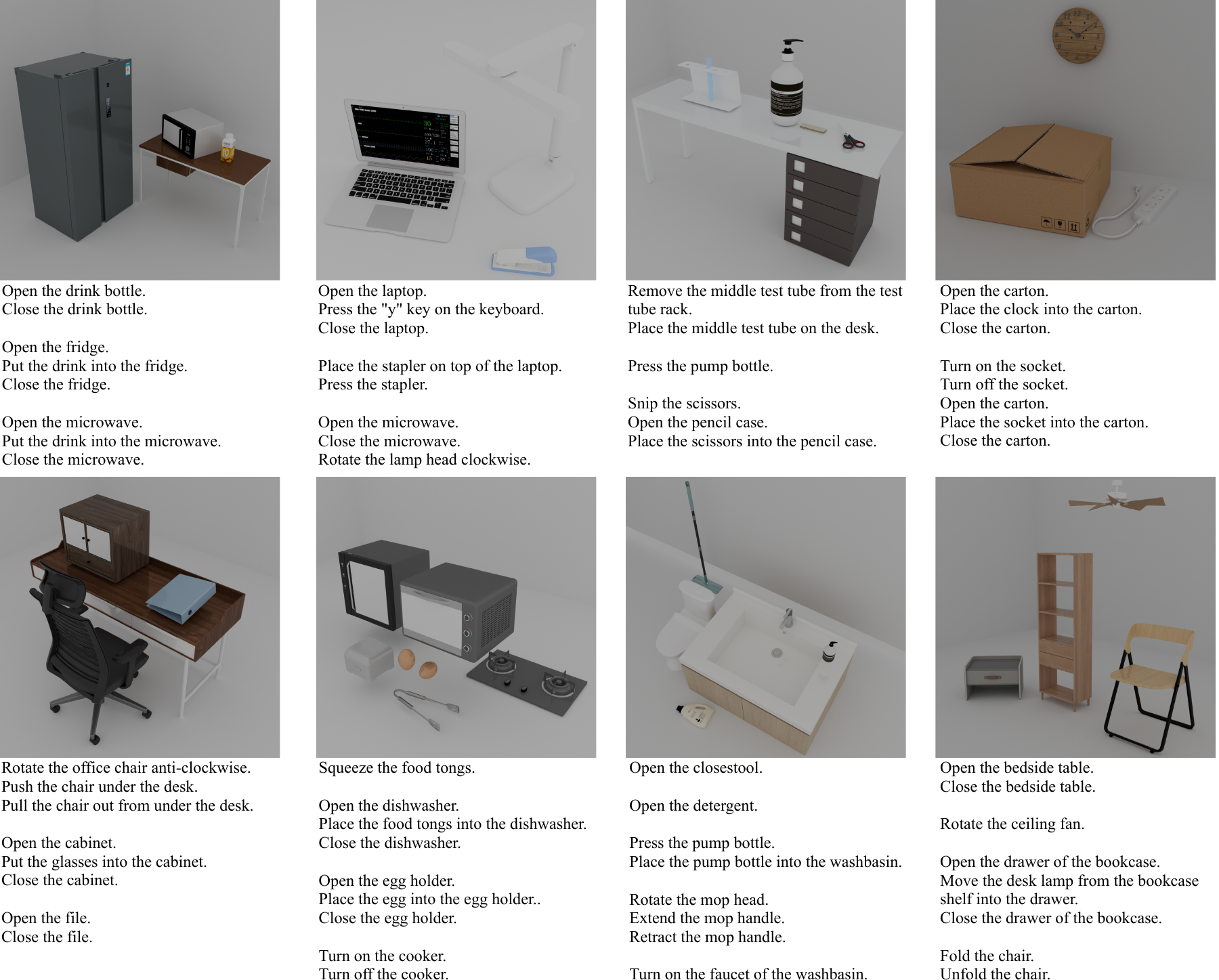

Examples of NeoWorld-Pro benchmark scenes with their corresponding manipulation tasks.

Results

Closed-loop programming improves reconstruction, articulation, and downstream interaction.

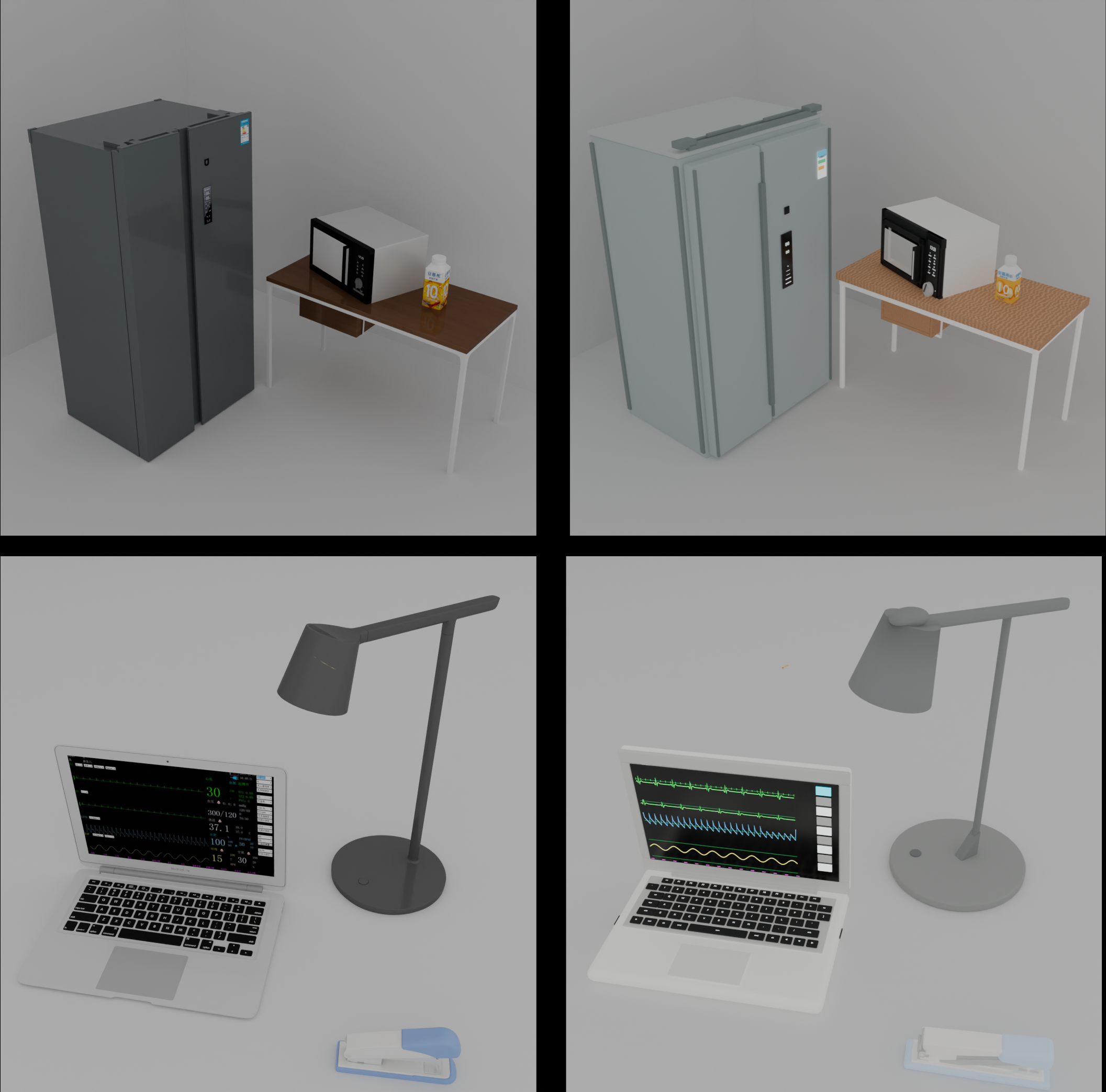

Real-captured input image. — Real-captured reconstruction (Input / Ours)

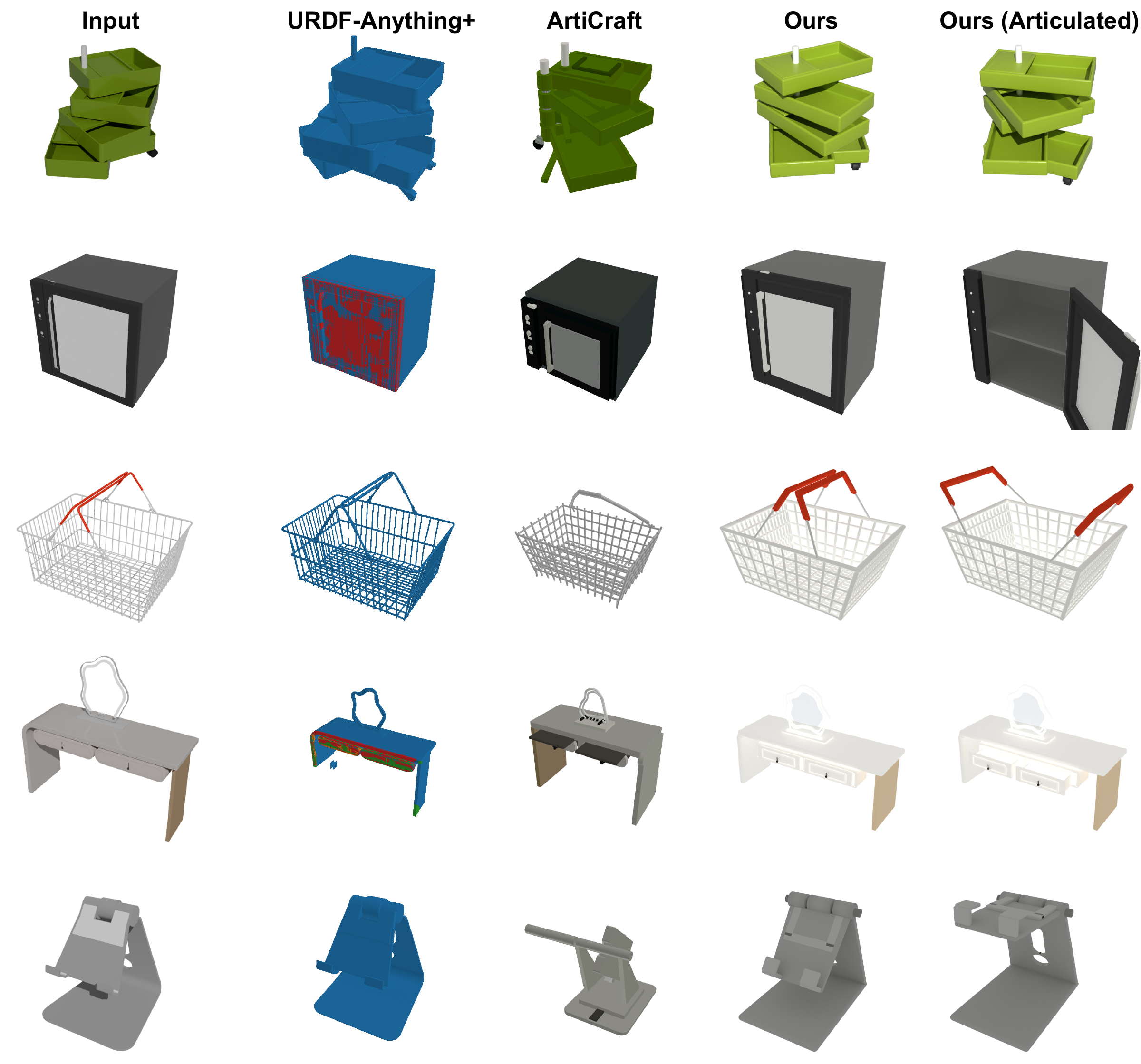

Object-Level Appearance and Geometry

Method	Appearance Evaluation (Image)					Similarity	Geometry Evaluation
Method	SSIM↑	LPIPS↓	FID↓	KID×100↓	CLIP↑	Uni3D↑	CD×10↓	F@0.01↑	F@0.05↑	F@0.1↑
Articulate-Anything	0.7646	0.2930	142.46	2.3116	0.7056	0.2218	0.2588	12.94	49.14	70.69
PhysX-Anything	0.7657	0.2991	93.42	0.4032	0.7937	0.1921	0.3744	10.14	41.16	62.65
NeoWorld-Pro	0.8398	0.1864	72.59	0.2878	0.8125	0.3522	0.2065	25.77	58.31	75.47

Articulation and Kinematics

Method	Total	#Pred	#Hit	Miss↓	Axis↓	Pivot↓	Type↓
Articulate-Anything	256	175	153	40%	47.70	1.54	23.62%
PhysX-Anything	256	188	136	47%	26.91	1.49	26.17%
NeoWorld-Pro	256	305	238	7%	16.50	1.09	5.63%

Citation

BibTeX

@misc{he2026NeoWorld-Pro,
  title  = {NeoWorld-Pro: Programming Interactive Scenes from Monocular Images for Embodied Simulation},
  author = {He, Yumeng and Song, Yichen and Yang, Xiaotian and Zhang, Weijia and Zhou, Zanwei and Gong, Junru and Yang, Xiaokang and Wang, Yunbo},
  year   = {2026},
  note   = {Project page}
}
